TN8/TL8 Series Toggle Switches

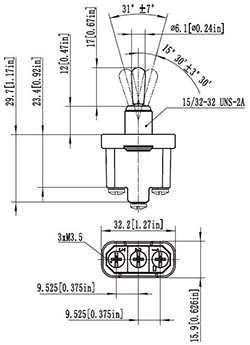

Features: *Completely sealed (double sealed) against dust, moisture and other contaminants *1, 2, 3 and 4 pole circuitry *One hole mounting for easy installation *Multi-circuits offered *2 & 3 position with maintained and momentary action *Molded-in terminal inserts *Molded-in terminal numbers *Captive cover screws *Grounding screw	Installation dimensions:
Specifications: IP & NEMA Ratings: Water tight seal per MIL-STD-108E and designed to meet IP68 and IP69K Service Life: Mechanically: 1 million operation Electrically: 20,000 operation at rated loads Operating Temperature: -46 ~ +85C (-50 ~ +185F) Electrical Rating: 15A 125/277VAC(GP) 1/2HP 125, 1HP 250VAC 20A 28VDC

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:TN8B/TL8B View Details	TYPE:TN8C/TL8C View Details	TYPE:TN8A/TL8A View Details
TYPE:TN8D/TL8D View Details	TYPE:TN8E/TL8E View Details	TYPE:TN8F/TL8F View Details
TYPE:TN8G/TL8G View Details	TYPE:TN8H/TL8H View Details
